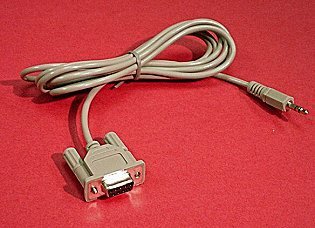

Serial data communication between the AIM-8-V3 and the host computer requires a special serial RS-232 data communication cable containing a 3- conductor 1/8" phone plug on one end and a DB-9 female connector on the other end (see above photo). The 1/8" phone plug connects to the AIM unit, while the DB-9 connector mates with the host computer’s DB-9 male serial communication (COMM) port. Since the RS-232 is essential for communications between the AIM unit and the host computer, one cable is included in both the Basic and Complete AIM-8-V3 System Packages. Back to the Complete AIM System Page |
