NEW PRODUCTS AVAILABLE FROM
NEVROKARD!
SLEEP
APNEA SCREENING
Products
 The
new versions of Nevrokard BPV and BRS now include an automatic
editor!. See "What's New" on the Nevrokard
website!
|
|
LT-aHRV
ver. 5.0.0
and SA-LTaHRV ver. 5.0.0
All
present LT-HRV/SA-LTHRV customers may upgrade this product to LT-aHRV/SA-LTHRV
ver. 5.0.0 (Contact
BIT for pricing).
LT-aHRV
ver. 5.0.0 and SA-LTaHRV ver. 5.0.0 are advanced
LT-HRV/SA-LTHRV versions with the many
new advantages:
See "What's New" on the Nevrokard
website!
|
|
|
Products
Cardiac Output Program and Accessories
|
|
COP-WIN Software
System (Cardiac Output Program for Windows)
Cardiac output data acquisition and analysis. Also available with Nevrokard
compatible HRV data acquisition! Nevrokard HRV analysis software is sold
separately!
COP-WIN/HRV Version
6.21
Available with either PCI-DAP (shown in photo left) or USB (shown
lower left) data acquisition
interfaces.
Click Here Information on COP-WIN!
Click Here for Information on COP-WIN 6.x enhancements!
This system is designed to process and edit the cardiac output signals from
an impedance cardiograph. It
includes the COP-WIN Software (on CD and diskette), a user’s manual, a SIU (Signal Input Unit), a DAP
(Data Acquisition Processor), 4 BNC cables (to link the impedance cadiograph to the SIU), and a
data cable (connects the SIU to the DAP). COP-WIN is compatible with the following
operating systems:, Windows2000,& XP - sorry, no DOS or Macintosh users.
Upgrades for DOS users are available. More Information.

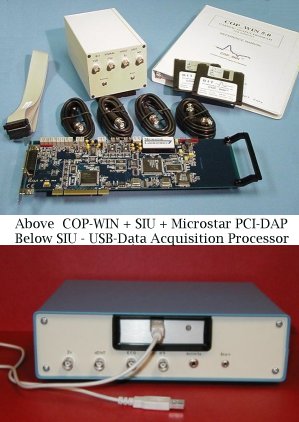

(Top Left Photo: Entire system shown. Clockwise starting from notebook: User’s Manual, Software
installation diskettes, PCI-DAP board, DAP data cable, and SIU and 4 BNC
cables. Lower Left Photo: USB model of COP-WIN SIU and USB cable (The items
shown replace the PCI-DAP, SIU box, and data cable that are shown in
top photo).
|
|
|
|
|
|
COPWORKS Software
System (Cardiac Output Program Workstation)
This system is a multi-user editing, printing,
graphing, and analysis version of COP-WIN for off-line data processing. It includes
an installation CD and a user’s manual. This system is used in conjunction with
COP-WIN
and AIM_HOST. It is included with the Complete AIM-8 System Package, but
COP-WIN users who wish
to use this software must purchase it separately.
More Information.
(System shown in picture: V5.10 software manual and diskettes, Version 6.2 with CD not shown)
|
|
|
COP-BPSW Blood
Pressure Synchronization Sensor for COP_WIN
Acting as a switch, COP-BPSW allows any blood
pressure monitor to initiate a COP Ensemble Average (EA) using the COP system’s remote start
cable. More Information.
(COP-BPSW shown in picture connected to the ‘Start’ phone jack on the SIU front panel)
BIT is now offering the SunTech Medical
Tango BP Monitor. This BP Monitor directly interfaces to the COP-WIN
System and does not require the COP-BPSW.
The
SunTech
Medical Tango BP monitor
is designed to
automatically measure and display your subject's systolic and diastolic blood
pressure values. The BP data are automatically transferred to the COP-WIN
program for the computation of Total Peripheral Resistance and TPR Index (no post
editing required). In addition, the Tango has been specifically designed
to
have a
high motion tolerance which gives it a distinct advantage over
most
of it's
competitors. BIT offers the Basic Model with one cuff and all necessary
cables to connect to COP-WIN/HRV system. (requires model HIC-2000 or
HIC-3000 impedance cardiograph with external ECG electrode cable)
|
|
|
Complete
COP-WIN/HRV
System with Computer
This is a system that comes with the COP software
and hardware installed on a new computer. The system consists of all the Complete
COP-WIN/HRV
System components and a computer system, which includes the following: Pentium Processor
(2 GHz or greater) with Windows 2000, or XP; 17" Monitor; Mouse; Keyboard;
256MB
RAM; 20GB Hard Drive; Sound Card; and Speakers. More Information.
A basic example system appears in picture. Shown in picture: Monitor, Keyboard, Mouse,
SIU with BNC cables and communication cable, COP-WIN manual. (System can
be built to order; just tell us what you need or what your data acquisition
requirements are, and we will suggest a system.)
|
Return to top of page
AIM and AIM Accessories
|
|
AIM-8-F3 Wearable
Cardiac Performance Monitor
This Item has been Discontinued!
AIM Accessories are still available!
The AIM-8-F3 is an Ambulatory Impedance
Monitor. The AIM-8-F3 is a compact system designed to monitor cardiac output, using
impedance cardiography, in ambulatory situations. It comes with the Complete and Basic
AIM-8 System Packages. More Information.
(Shown in picture: AIM-8-V3 monitor in carrying case. Credit Card is included in the
picture for size reference.)
|
|
|
Complete AIM-8
System Package
This Item has been
Discontinued!
AIM Accessories are still available!
This system is designed for acquisition,
recovery, and analysis of cardiac performance data from ambulatory individuals. The system
includes an AIM-8-F3 monitor with carrying case and belt, COP_WIN and COPWORKS software for
data analysis, software and hardware user’s manuals, impedance electrodes cables, a RS-232
serial communication cable (for interfacing between the computer and the
AIM-8-F3 monitor),
a calibration box (used to calibrate the AIM), and a 9V battery (for powering the AIM).
More Information.
(Entire system shown in picture. Pictured from top to bottom, left to right: webbed belt
for AIM-8; RS-232 serial communication cable, AIM-8-F3 monitor in carrying case, and
calibration box; AIM_HOST and AIM Monitor manual with AIM_HOST installation diskettes, AIM
impedance electrode cable (with 9V in center), COPWORKS manual and software installation
diskettes.)
|
|
|
Basic
AIM-8 System Package
This Item has been
Discontinued!
AIM Accessories are still available!
This system is designed for acquisition,
recovery, and analysis of cardiac performance data from ambulatory individuals. It is the
same package as the Complete AIM-8 System Package (described above), except it does not
include COPWORKS, the multi-user, data editing and analysis program.
More Information.
(Entire system shown in picture. The items pictured are as follows (top to bottom, left
to right): webbed belt, AIM Calibration box, AIM unit in carrying case, AIM_HOST and AIM-8
monitor user’s manual, AIM_HOST software installation diskettes, RS-232 serial communication
cable, Impedance Electrode Cables, and 9V battery.)
|
|
|
AIM-8
Calibration Box for AIM or COP System
The AIM-8 Calibration box is a calibration
unit which is used to align the AIM and COP software systems with the AIM-8 monitor. It
comes with the Complete and Basic AIM-8 System Packages.
More Information.
(Calibration unit shown in picture.)
|
|
|
AIM-BPSW
Blood Pressure Synchronization Sensor for the AIM
Acting as a switch, AIM-BPSW allows any
blood pressure monitor to initiate an AIM Ensemble Average (EA) using the AIM-8 monitor’s
BP-SW input.
More Information.
(AIM-BPSW shown in picture.)
|
|
|
AIM-BPSS
Blood Pressure Synchronization 'Smart' Sensor for the AIM
The AIM-BPSS, as the AIM-BPSW, allows any
blood pressure monitor to initiate an AIM Ensemble Average (EA). In addition, however, this new
'Smart' sensor eliminates the multiple triggering (multiple EA's) problem that occurs
when the AIM-BPSW is used with some of the newer oscillometric-type BP monitors like the
'Oscar' and the 'Space Lab' units.
More Information.
(AIM-BPSS shown in picture.)
|
|
|
AIM-8
Electrode Cable Assembly
A 34" long impedance electrode cable with 5
leads for use with the AIM-8 monitor. (Part number AIM8-EC532.)
More Information.
(AIM-8 Impedance Electrode Assembly shown in picture.)
|
|
|
AIM-8
RS-232 Communication Cable
The RS-232 cable is the communication
line between an AIM-8 monitor and a computer.
More Information.
(RS-232 cable shown in picture.)
|
Return to top of page
Impedance Cardiographs and Accessories
|
|
HIC-2500
and HIC-4000 Impedance Cardiographs
The HIC-2500 and HIC-4000 impedance cardiographs designed
for in lab use.
More Information

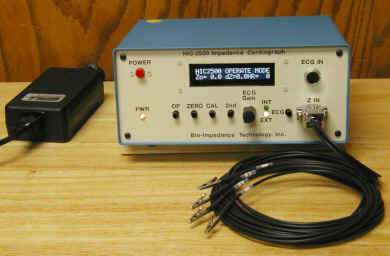

(HIC-2500 shown in picture.)
Ordering
Info
|
|
|
HIC2000-ZC10
Electrode Cable Assembly
10’ long, 4-lead impedance electrode cable for
use with the HIC-2000/3000. One cable is included with each HIC instrument. Additional cables may
be purchased see Price List
(One, 10’ impedance electrode cable shown in picture.)
|
|
|
Separate
ECG Electrode Cable
The separate, ECG electrode cable is for use
with the HIC-2000 and 3000. Part # HIC2000ECG3
Price List
(Separate ECG electrode cable assembly shown in picture.)
|
|
|
Cardiograph
Electrode Tape
The band electrode is used with both the AIM unit and the
HIC-2000/2500/3000/4000. Our electrode placement page has a diagram illustrating
the use and placement of the cardiograph electrode tape. Please click IFM
Electrode Tape for ordering
information.
(30 yd. reel of electrode tape shown.)
|
Return to top of page
 Software
Products!
BIT is the distributor for NEVROKARD analytical software products in the USA
and Canada!
These
products include:
aHRV (Analysis of Heart Rate
Variability)
| LT-aHRV |
HRV software for segmented analysis of long-term
ECG recordings, with numeric and 3D graphic output of results. Compatible
with the same file types as Nevrokard HRV. |
BPV (Analysis of Blood
Pressure Variability)
BRS
(Baroreceptor Sensitivity Analysis)
What's New at
NEVROKARD!
Obstructive
Sleep
Apnea Screening
|
Nevrokard®
OSAS
Obstructive
Sleep
Apnea Screening (OSAS)
software
which makes possible a direct comparison between quantitative heart rate
variability parameters in the time and frequency domains during the
wakeful state and sleep, thus enabling the doctor to determine whether
suspicion of sleep apnea is grounded and thus whether an indication for
further diagnostic procedures (i.e., polysomnography) in a sleep
laboratory exists.
. |
SMALL ANIMAL VERSIONS ALSO AVAILABLE!
| Small
Animal HRV
Analysis |
Nevrokard®
SA-aHRV
is a software package for Heart Rate Variability Analysis in small
animals. It
features frequency domain analysis of up to 5Hz and a resampling rate of
10Hz. It is intended for use in animals having a considerably higher heart
rate than human subjects. The complementary File Preparation software for
small animals is Nevrokard® SA-HRVFP. . |
| Small
Animal BPV
Analysis |
Nevrokard® SA-BPV
is a software package for Blood Pressure Variability Analysis in small
animals. It
features frequency domain analysis of up to 5Hz and a resampling rate of
10Hz. It is intended for use in animals having a considerably higher heart
rate than human subjects. The complementary File Preparation software for
small animals is
Nevrokard®
NKFP . |
| Small
Animal BRS Analysis |
Software for Barorereflex
Sensitivity Analysis. Small
Animal BRS Analysis SA-BRS
software is now available as well!
This new software
package featuring frequency domain analysis of up to 5Hz and a resampling
rate of 10Hz was designed for use in small animals having a considerably
higher heart rate than human subjects. It is complementary to the Nevrokard®
NK File Preparation and Nevrokard® BRS Analysis
software designed for use in human subjects. |
LDDA (Software for analysis of
single-channel or two-channel data obtained with Laser Doppler instruments for
evaluation of microvascular perfusion. See
Nevrokard website for more information.)
Nevrokard website
Please contact BIT (919.960.7799) for sales and pricing information or view the Nevrokard website for
product information and trial product downloads!
